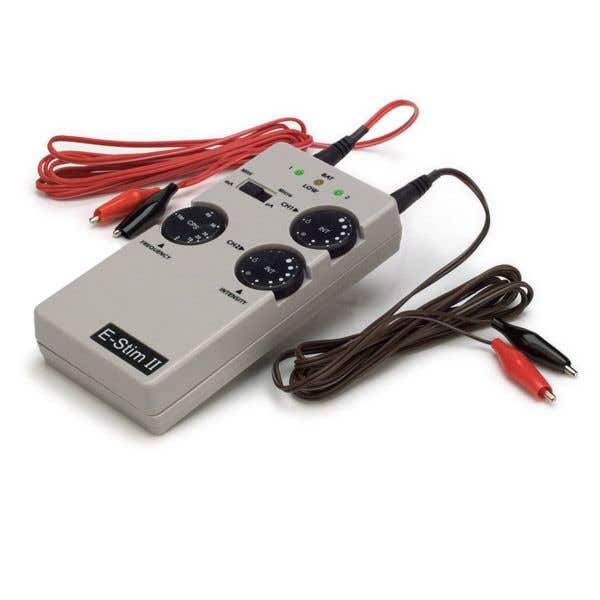

E-Stim II® Electro Acupuncture Device
In stock
Estimated Shipping Price
Shipping information
Est. Domestic Shipping Content
Description
E-Stim II®
Dual Channel Stimulator with Milli and Micro current settings. Each channel also includes its own green LED light which displays power on and frequency. Controls are simple and easy to use with 2 control knobs that control the output intensity of each channel separately, 1 knob to control the frequency of the output for both channels, and one selectable switch for Milli-amps (normal current) or Micro-amps (microcurrent). Device is small enough to be carried in most pockets and includes a belt clip.
Specifications:
| E-Stim II® | Dual Channel |
| Size of Unit | 5” x 2.5” x 1” (15.2 x 6 x 2.4 cm) |
| Weight of the Unit | 110g |
| Power Source | 9V Battery |
| Pulse Shape | Biphasic Square Wave with Negative Spike |
| Pulse Rate (adjustable) | 2 Hz ~ 100 Hz (±20%) |
| Output Current (adjustable) at Milli on 500? Load | 0-40 mA (±20%)r.m. s |
| Output Current (adjustable) at Micro on 500? Load | 0-2 mA (±20%)r.m. s |
| Pulse Width | 260 µ sec (±20%) |
| Indicator Lamp | Green lamp(s) to show power on and pulse rate of channel 1 and 2 separately Yellow low battery lamp illuminates when battery power drops to 5.1 V |
| Operating Temperature | 50°F to 104°F (10°C to 40°C) |
| Output Jack | 3.5 mm Diameter Jack |
Components:
- (1) E-Stim II™ Device
- (2) Alligator Type Connecting Wires
- (1) 9V Battery
- Instruction Manual
- Hard Case
